What is contact angle?

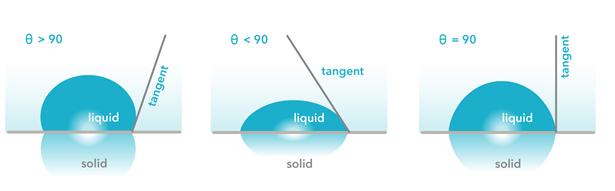

Contact angle ,θ , is a quantitative measure of the wetting of a solid by a liquid. It is defined geometrically as the angle formed by a liquid at the three phase boundary where a liquid, gas and solid intersect as shown below:

It can be seen from this figure that a low values of contact angle (θ) indicates that the liquid spreads, or wets well, while a high contact angle indicates poor wetting. If the angle θ is less than 90 degrees the liquid is said to wet the solid. If it is greater than 90 degrees it is said to be non-wetting. A zero contact angle represents complete wetting.

The measurement of a single static contact angle to characterize the interaction is no longer thought to be adequate. For any given solid/ liquid interaction there exists a range of contact angles which may be found. The value of static contact angles are found to depend on the recent history of the interaction. When the drop has recently expanded the angle is said to represent the ‘advanced’ contact angle. When the drop has recently contracted the angle is said to represent the ‘receded’ contact angle. These angles fall within a range with advanced angles approaching a maximum value and receded angles approaching a minimum value.

If the three phase (liquid/solid/vapor) boundary is in actual motion the angles produced are called Dynamic Contact Angles and are referred to as ‘advancing’ and ‘receding’ angles. The difference between ‘advanced’ and ‘advancing’, ‘receded’ and ‘receding’ is that in the static case motion is incipient in the dynamic case motion is actual. Dynamic contact angles may be assayed at various rates of speed. Dynamic contact angles measured at low velocities should be equal to properly measured static angles.

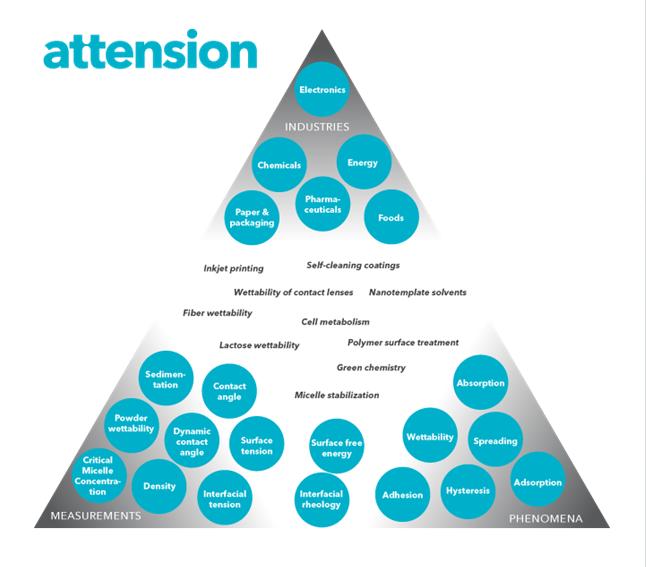

Applications
